Description
Genuine DigiTrak® Falcon F5+ locator, inspected and function-tested for reliable field performance.
Designed for professional horizontal directional drilling applications, the Falcon F5+ uses DigiTrak® Falcon technology to scan and operate across a wide range of frequencies, helping reduce interference and maintain accurate locating performance in challenging jobsite conditions.
This package includes the primary components needed for a complete F5+ locating setup.

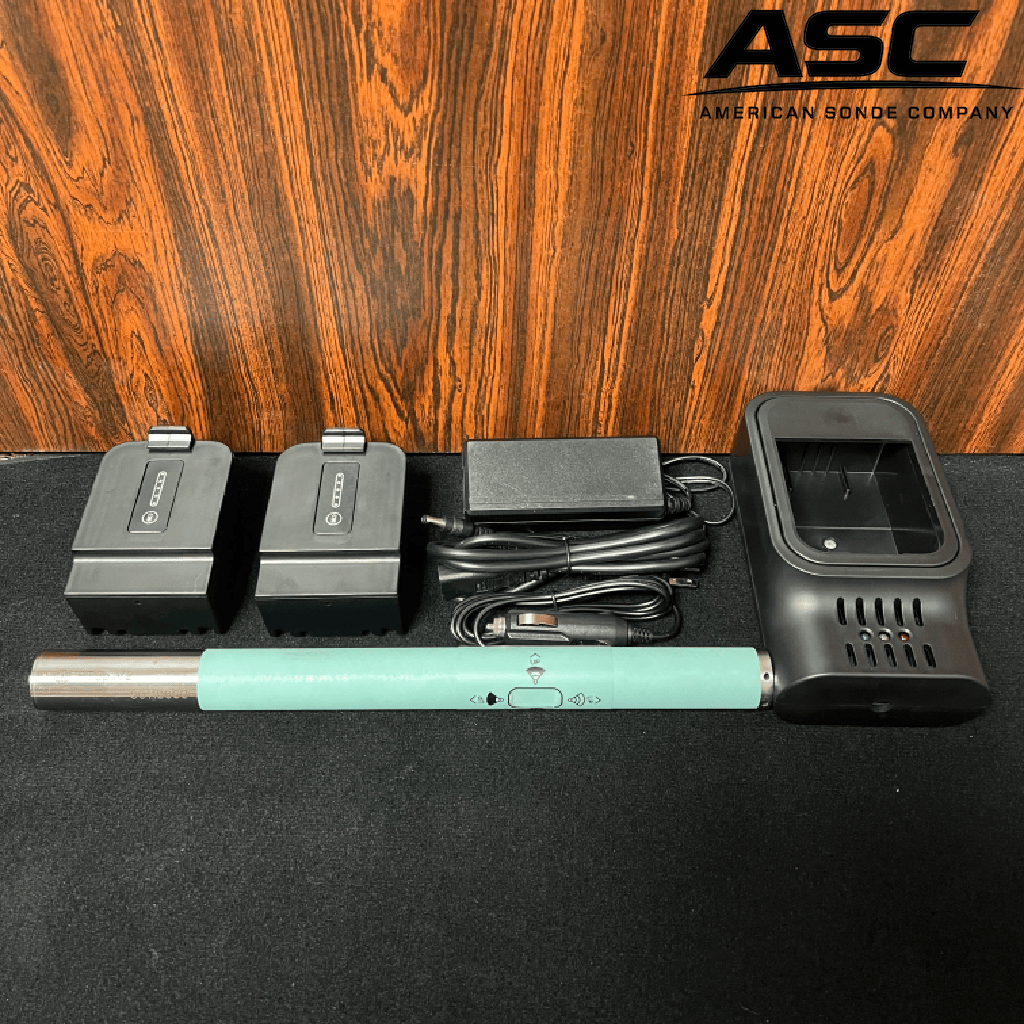

What’s Included

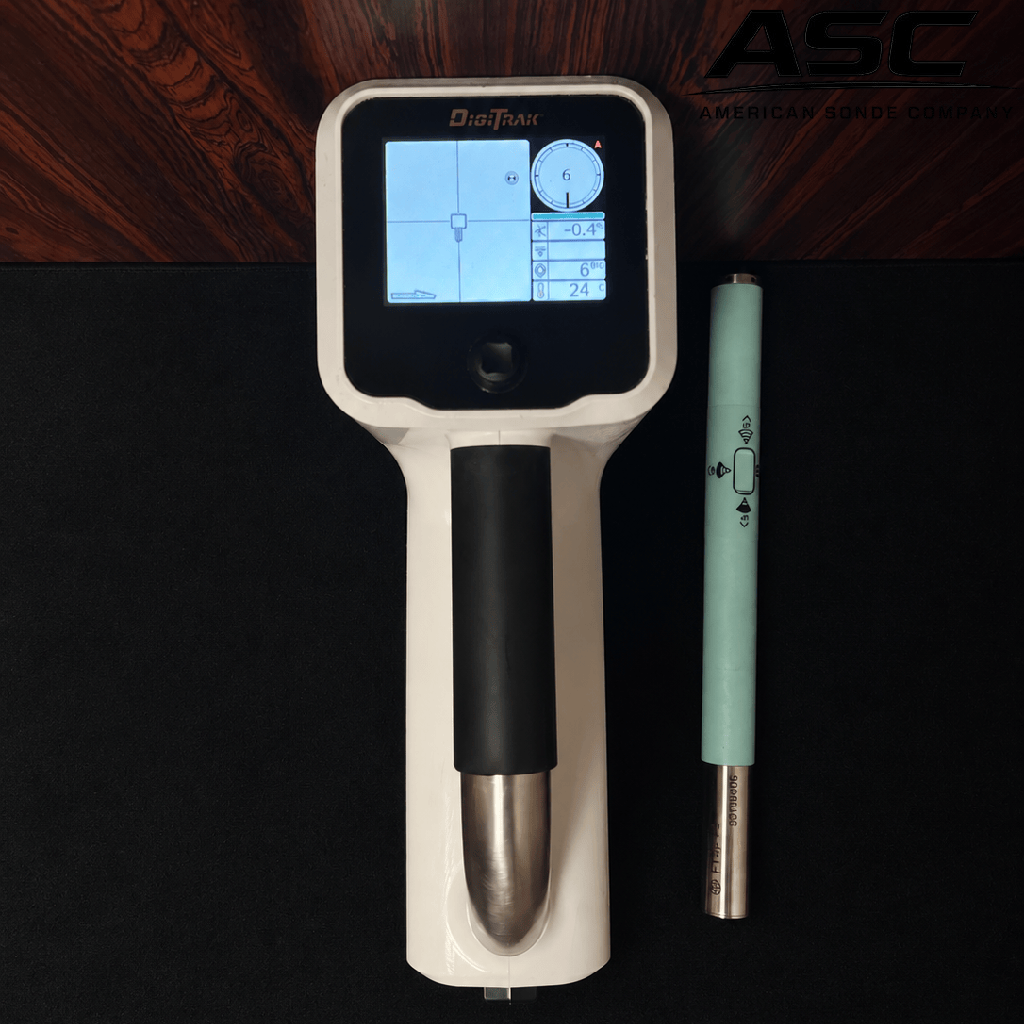

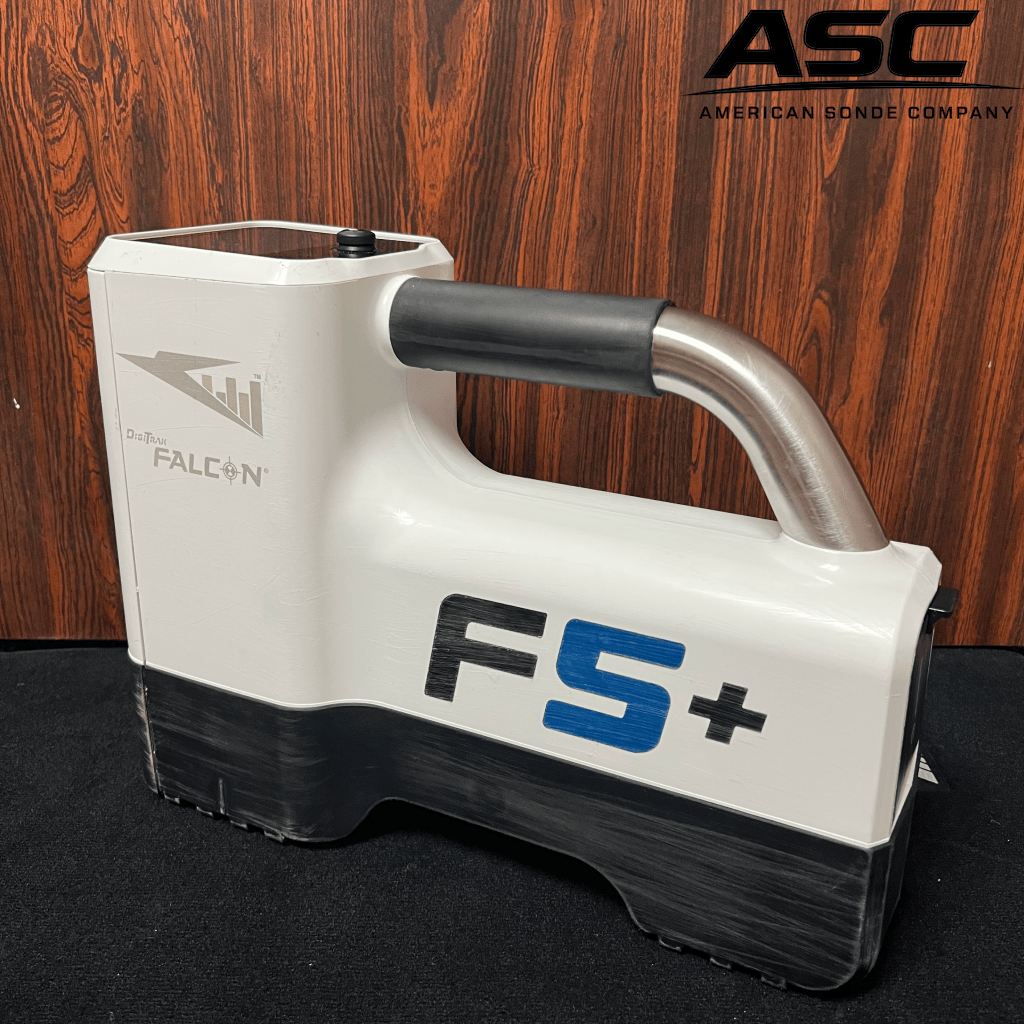

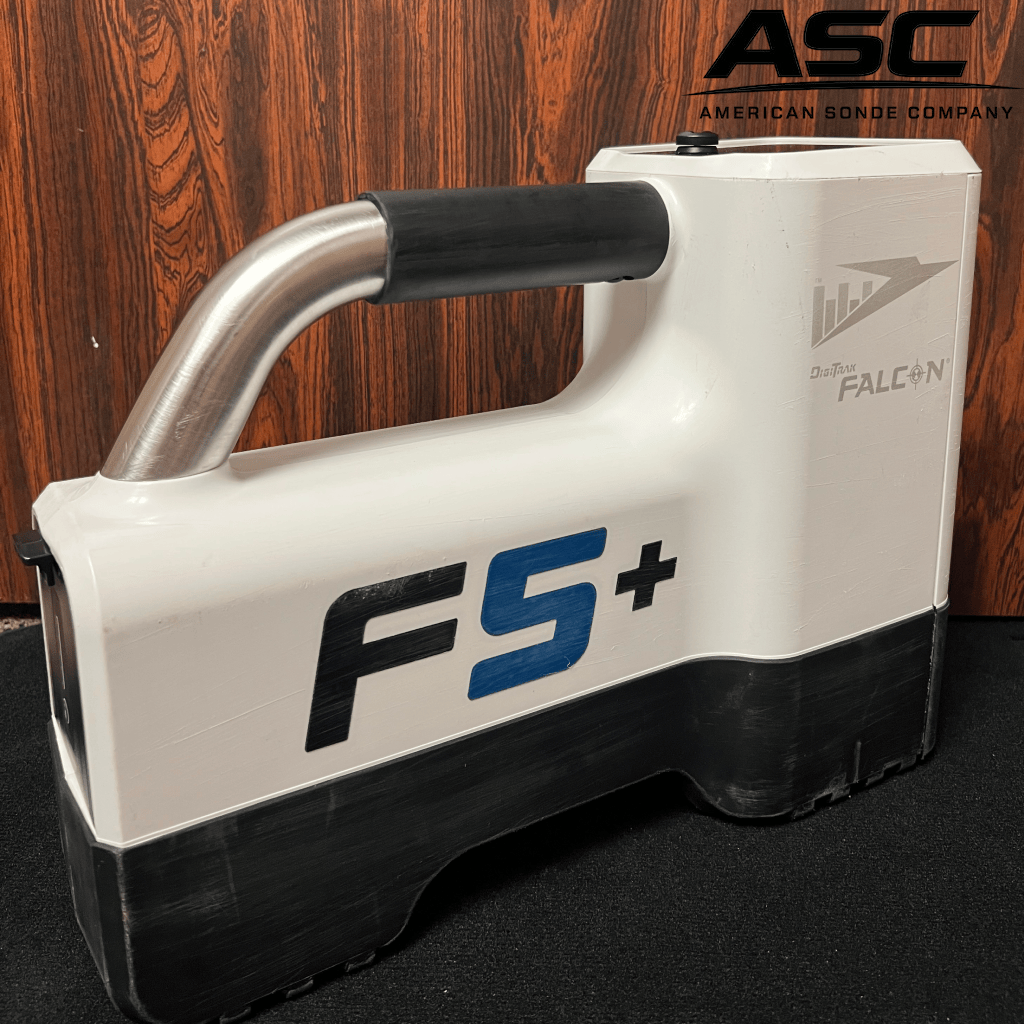

- DigiTrak® Falcon F5+ Locator

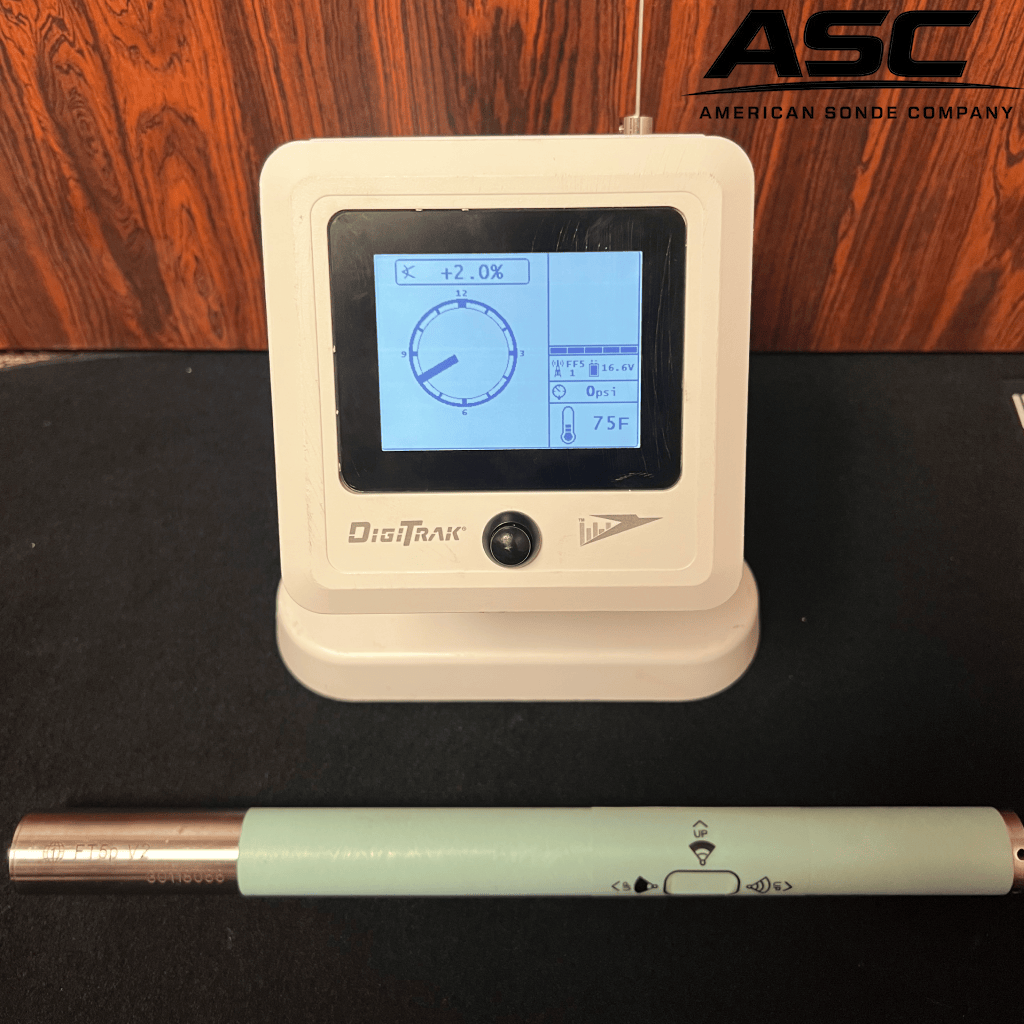

- DigiTrak® FCD Remote Display
- DigiTrak® FT5p Falcon Transmitter
- 2 Lithium-ion Batteries
- 1 Battery Charger
- 1 FCD Antenna
All included components are genuine DigiTrak® equipment unless otherwise stated. The locator and included equipment are previously used and are inspected and function-tested before shipment.
The F5+ supports DigiTrak® Falcon F5+ transmitters, including wideband and Sub-k® transmitter options, and is compatible with both FCD and Aurora remote displays. Each locator is inspected and function-tested before shipment.
Specifications
- Condition: Used
- Model: Falcon F5+ / FF5+ / FAR5
- Wideband Frequency Range: 4.5–45 kHz
- Sub-k® Frequency Range: 0.33–0.75 kHz
- Compatible Transmitters: FT5XLp, FT5Lp, FT5p, FTR5Lp, FTR5p, FTR5s, FT2
- Compatible Remote Displays: DigiTrak® FCD and Aurora
- Compatible Batteries: Falcon Lithium-Ion FBP and NiMH SBP
- Receiver Battery Life: Up to 12 hours with Falcon Battery Pack
- Accuracy: ±5% up to maximum depth range
- Maximum Depth Capability: Up to 180 ft*
- Maximum Data Range: Up to 220 ft*
- Telemetry Range: Up to 3,000 ft**
*Maximum depth and data ranges depend on the transmitter, operating mode, interference, housing, frequency, and other field conditions. The published maximums are achieved with compatible F5+ transmitter configurations.
**Maximum telemetry range requires compatible remote display and antenna configuration.
This is a genuine, previously used DigiTrak® locator sold in used condition and has not been represented as factory refurbished. American Sonde Company is an independent reseller and is not affiliated with or authorized by Digital Control Incorporated.
